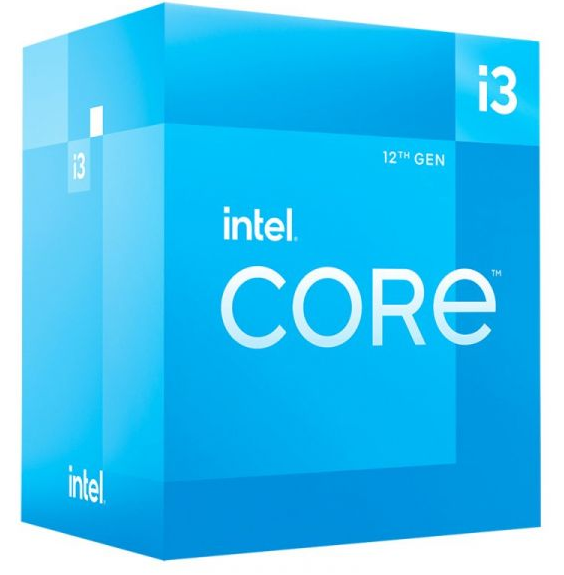

Cpu intel [s1700]core i3-12100 4.3ghz
Ref. 984387

Essentials



• Product Collection12th Generation Intel® Core™ i3 Processors
• Code NameProducts formerly Alder Lake
• Vertical SegmentDesktop
• Processor Numberi3-12100
• StatusLaunched
• Launch DateQ1'22
• LithographyIntel 7
• Use ConditionsPC/Client/Tablet
• Recommended Customer Price2.00 - 9.00

CPU Specifications



• Total Cores4
• # of Performance-cores4
• # of Efficient-cores0
• Total Threads8
• Max Turbo Frequency4.30 GHz
• Performance-core Max Turbo Frequency4.30 GHz
• Performance-core Base Frequency3.30 GHz
• Cache12 MB Intel® Smart Cache
• Total L2 Cache5 MB
• Processor Base Power60 W
• Maximum Turbo Power89 W

Supplemental Information



• Embedded Options AvailableYes
• DatasheetView now

Memory Specifications



• Max Memory Size (dependent on memory type)128 GB
• Memory TypesUp to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels2
• Max Memory Bandwidth76.8 GB/s

Processor Graphics



• Processor Graphics ‡Intel® UHD Graphics 730
• Graphics Base Frequency300 MHz
• Graphics Max Dynamic Frequency1.40 GHz
• Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units24
• Max Resolution (HDMI)‡4096 x 2160 @ 60Hz
• Max Resolution (DP)‡7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
• DirectX* Support12
• OpenGL* Support4.5
• Multi-Format Codec Engines1
• Intel® Quick Sync VideoYes
• Intel® Clear Video HD TechnologyYes
• # of Displays Supported ‡4
• Device ID0x4692
• OpenCL* Support2.1

Expansion Options



• Direct Media Interface (DMI) Revision4.0
• Max # of DMI Lanes8
• Scalability1S Only
• PCI Express Revision5.0 and 4.0
• PCI Express Configurations ‡Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes20

Package Specifications



• Sockets SupportedFCLGA1700
• Max CPU Configuration1
• Thermal Solution SpecificationPCG 2020C
• TJUNCTION100°C
• Package Size45.0 mm x 37.5 mm

Advanced Technologies



• Intel® Gaussian & Neural Accelerator3.0
• Intel® Thread DirectorNo
• Intel® Deep Learning Boost (Intel® DL Boost)Yes
• Intel® Optane™ Memory Supported ‡Yes
• Intel® Speed Shift TechnologyYes
• Intel® Turbo Boost Max Technology 3.0 ‡No
• Intel® Turbo Boost Technology ‡2.0
• Intel® Hyper-Threading Technology ‡Yes
•
